CIRCUIT COMPONENTS

predictor


Hetero-associative memory component for predictive learning.

See also: https://creatingintelligence.org/#predictive-learning

Details and properties

  • Wrapper for a hetero-associative topological memory instance.
  • Associates the data from the previous execution cycle with the current label signal.
  • Typically used as readout node in reservoir architectures.
  • Receives the label from its first receive block and data from the remaining blocks.
  • Learns if the prediction does not match the subsequent input.
  • A closed feedback loop enables generative prediction.
  • Sends the inferred label.
  • Resolves multiset and inibitory input prior to processing.


Property Default Description
send required integer, representing a single output slot
receive required two or more input slots with pathway tags
threshold automatic relative pattern matching threshold


Use standard style options to customize the component’s appearance in circuit schematics.

Predictive learning

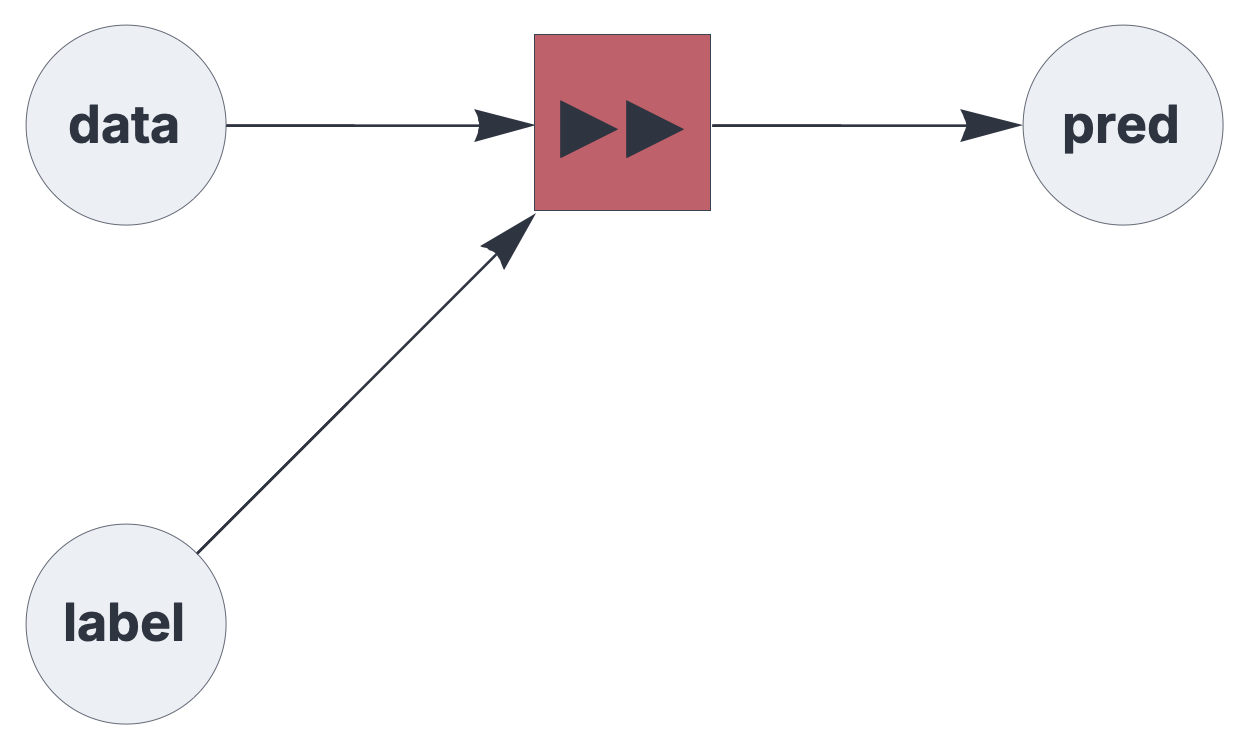

A basic setup for predictive learning with hetero-associative memory:

{ "hyperparameters": {"default": [1000, 10]},
  "dataflow": [
    {"component": "input", "send": [1], "label": "label"},
    {"component": "input", "send": [2], "label": "data"},
    {"component": "predictor", "send": [11], "receive": [1, 2]},
    {"component": "output", "receive": [11], "label": "pred"}
  ]}
