delay

Dataflow component, delaying incoming signals by one execution cycle and optionally integrating signals over multiple timesteps.

Details and properties

Delays signal propagation by one time step.
Supports temporal integration of signals across evaluation cycles, governed by update rule plugins.
Uses the same temporal integration mechanism as temporal.
Is stateless by default (replacement update rule) and stateful with any other update rule.
Controls sparsity through stochastic subsampling mechanisms.
Transparently handles multisets and inhibitory signals.
Supports multiple input or output blocks.

Property	Default	Description
`send`	required	`[integer,...]` representing one or more output slots
`receive`	required	one or more input slots with pathway tags
`plugin`	`replacement`	update rule, governing the temporal integration logic
`latch`	false	whether to leave the state unchanged if the input is empty (no decay, no capacity subsampling, no update)
`rate_limit`	unlimited	subsample input if population exceeds the rate limit
`decay`	0	pre-integration decay (leak rate)
`capacity`	0	relative population carried over from previous state (bypassed with default `replacement` plugin)
`decimate`	1	proportional stochastic decimation

Use standard style options to customize the component’s appearance in circuit schematics.

Stateless delay

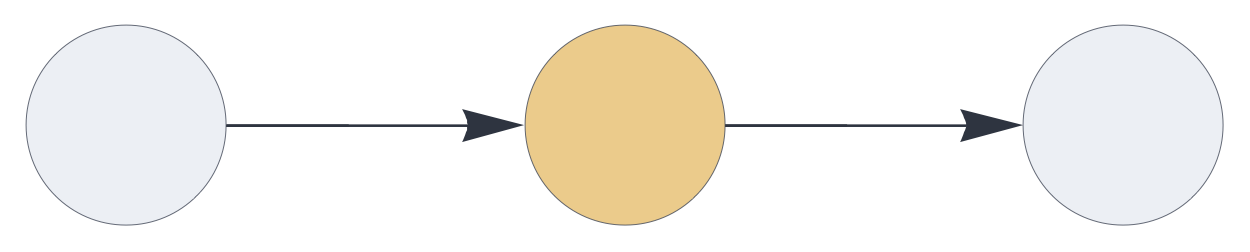

The following circuit transports the signal, applying a proportional stochastic decimation by 80 percent. Note that this setup does not delay the signal flow because receiving data from inputs and sending data to outputs is instantaneous.

{ "hyperparameters": {"default": [1000, 10]},
  "dataflow": [
    {"component": "input", "send": [1]},
    {"component": "delay", "send": [11],
        "receive": [1], "decimate": 0.8},
    {"component": "output", "receive": [11]}
  ]}

Delay chains

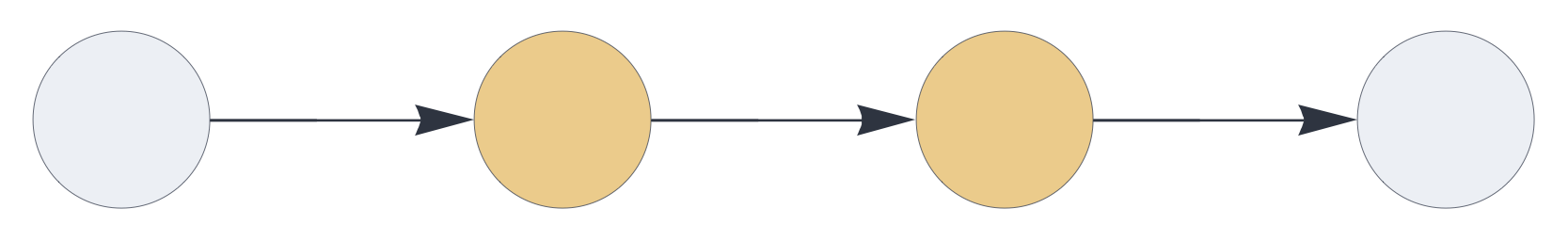

The following setup, chaining two delay nodes, delays the signal by one timestep:

{ "hyperparameters": {"default": [1000, 10]},
  "dataflow": [
    {"component": "input", "send": [1]},
    {"component": "delay", "send": [11], "receive": [1]},
    {"component": "delay", "send": [21], "receive": [11]},
    {"component": "output", "receive": [21]}
  ]}

Block coding

The delay component may receive or send multiple blocks of data. The total input dimensions and output dimensions must be the same.

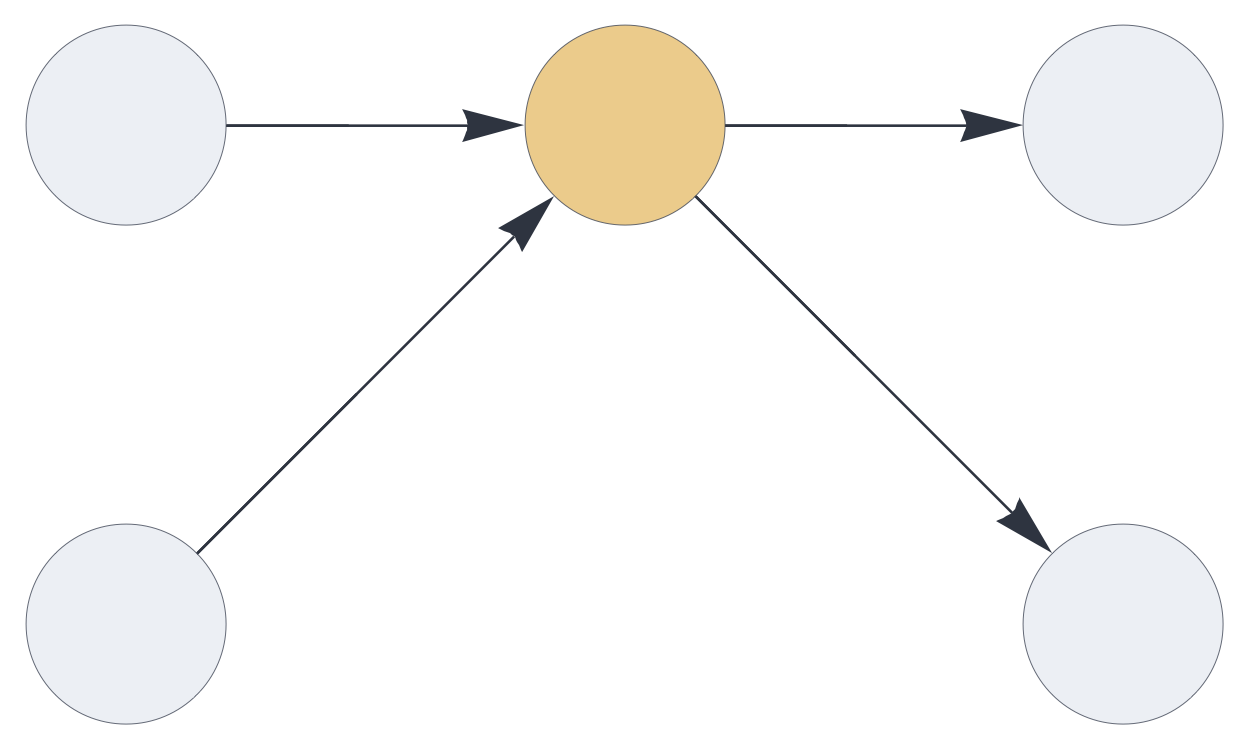

Here the delay node transparently merges two blocks into a single block that has twice the dimension of the inputs:

{ "hyperparameters": {"default": [1000, 10], "11": [2000, 20]},
  "dataflow": [
    {"component": "input", "send": [1]},
    {"component": "input", "send": [2]},
    {"component": "delay", "send": [11], "receive": [1, 2]},
    {"component": "output", "receive": [11]}
  ]}

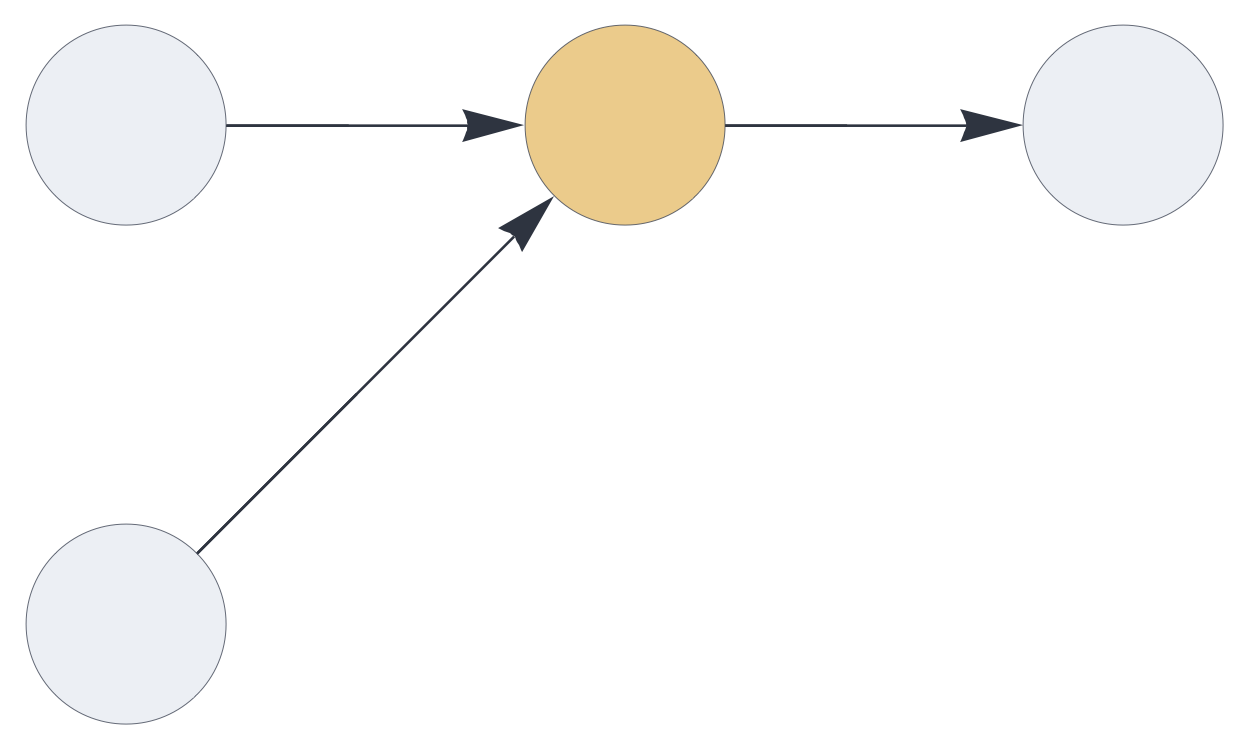

In this circuit, two disjoint blocks flow through the delay node:

{ "hyperparameters": {"default": [1000, 10]},
  "dataflow": [
    {"component": "input", "send": [1]},
    {"component": "input", "send": [2]},
    {"component": "delay", "send": [11, 12], "receive": [1, 2]},
    {"component": "output", "receive": [11]},
    {"component": "output", "receive": [12]}
  ]}

Pathway merging

In the following circuit, the two incoming blocks of information are merged. The output dimension is the same as either input dimension. Note that the list notation in the receive specification denotes signal merging.

{ "hyperparameters": {"default": [1000, 10]},
  "dataflow": [
    {"component": "input", "send": [1]},
    {"component": "input", "send": [2]},
    {"component": "delay", "send": [11], "receive": [[1, 2]], "decimate": 0.8},
    {"component": "output", "receive": [11]}
  ]}

Temporal integration via augmentation

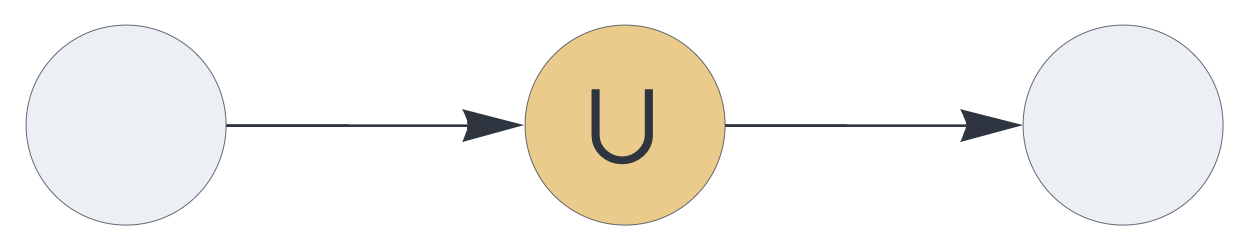

This circuit uses the augmentation plugin, carrying over twice the default population and applying a pre-integration stochastic decay of 15 percent. The accumulated state does not retain the temporal order of signals.

{ "hyperparameters": {"default": [1000, 10]},
  "dataflow": [
    {"component": "input", "send": [1]},
    {"component": "delay", "plugin": "augmentation", "send": [11],
        "receive": [1], "capacity": 2, "decay": 0.15},
    {"component": "output", "receive": [11]}
  ]}

Temporal sequence permutation

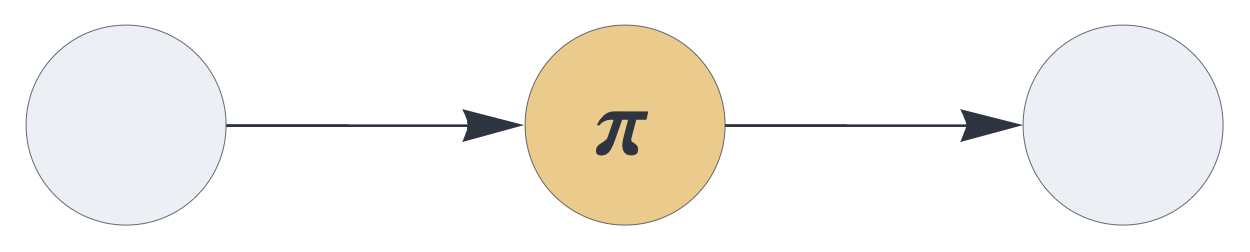

Using the permutation plugin as the update rule, a permutation is applied to the previous state before integration with the current incoming signal. The accumulated state retains information about the order within the temporal sequence.

{ "hyperparameters": {"default": [1000, 10]},
  "dataflow": [
    {"component": "input", "send": [1]},
    {"component": "delay", "plugin": "permutation", "send": [11],
        "receive": [1], "capacity": 5},
    {"component": "output", "receive": [11]}
  ]}

Source code

def delay(config):
    plugin_factory = config.get("plugin", replacement)

    if isinstance(plugin_factory, str):
        import sys
        plugin_factory = getattr(
            sys.modules[__name__],
            plugin_factory,
            replacement)

    plugin = plugin_factory(config)

    if plugin_factory is replacement:
        plugin.pop("label", None)

    dims1 = [b[0] for b in config.get("receive_blocks", [])]
    dims2 = [b[0] for b in config.get("send_blocks", [])]
    pop = sum(b[1] for b in config.get("receive_blocks", []))

    # Limit size of query pattern, relative to pop.
    # Default: total input dimension (no limit).
    if "rate_limit" in config:
        absratelimit = round(pop * config["rate_limit"])
    else:
        absratelimit = sum(dims1)

    decay = config.get("decay", 0.0)
    capacity_factor = config.get("capacity", 0.0)
    abscapacity = round(capacity_factor * pop)
    decimation = config.get("decimate", 1.0)
    latch = config.get("latch", False)

    Xstate = []

    def f(*blocks):
        nonlocal Xstate
        X = multiset_block_join(list(blocks), dims1)

        if len(X) > absratelimit:
            X = sorted(
                rng.choice(
                    X,
                    size=absratelimit,
                    replace=False).tolist())

        # Latch: an empty input leaves the state unchanged
        # (no decay, no capacity subsampling, no integration)
        if not (latch and len(X) == 0):
            if decay > 0.0:
                keep_size = math.floor((1.0 - decay) * len(Xstate))
                Xstate = sorted(
                    rng.choice(
                        Xstate,
                        size=keep_size,
                        replace=False).tolist())

            if len(Xstate) > abscapacity:
                Xstate = sorted(
                    rng.choice(
                        Xstate,
                        size=abscapacity,
                        replace=False).tolist())

            # Temporal integration via update rules
            Xstate = plugin["updaterule"](X, Xstate)

        # Proportional multiset subsampling applied to output
        Xdec = Xstate
        if decimation < 1.0:
            sample_size = math.floor(decimation * len(Xdec))
            Xdec = sorted(
                rng.choice(
                    Xdec,
                    size=sample_size,
                    replace=False).tolist())

        return tuple(multiset_block_split(Xdec, dims2))

    result = dict(plugin)

    result.update({
        "function": f,
        "checks": ["arginp", "argout", "totaldim"],
        "fill": 13
    })
    return result
