CIRCUIT COMPONENTS

circuit

A component that embeds an entire circuit.

See also: https://creatingintelligence.org/#circuits

Details and properties

• Circuits can be nested to any depth, provided the nesting is acyclic.
• Uses the shared plugin for embedding a shared circuit.
• Uses the file plugin to create a local embedded circuit.
• Exchanges sets or multisets with the embedded circuit.
• The embedded circuit may use input or output plugins to preprocess or postprocess the exchanged data.

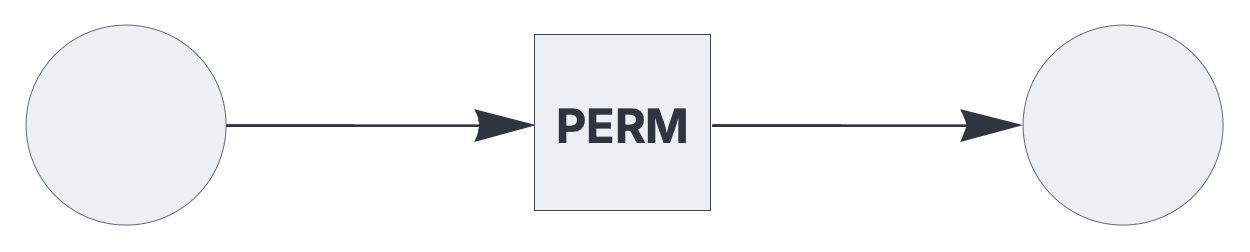

Shared embedded circuits

An instantiated circuit can be shared to and embedded by other circuits by registering it via a name option:

{ "options": {"name": "PERM"},
  "hyperparameters": {"default": [1000, 10]},
  "dataflow": [
    {"component": "input", "send": [1]},
    {"component": "output", "receive": [{"slot": 1, "tags": ["permute"]}]}
  ]}

The following circuit embeds the above instance by referring to its registry name. The same shared instance can be embedded by multiple circuit components.

{ "hyperparameters": {"default": [1000, 10]},
  "dataflow": [
    {"component": "input", "send": [1]},
    {"component": "circuit", "plugin": "shared", "send": [11],
        "receive": [1], "name": "PERM"},
    {"component": "output", "receive": [11]}
  ]}

The hyperparameters of shared embedded circuits must match the parameters of its inbound and outbound slots.

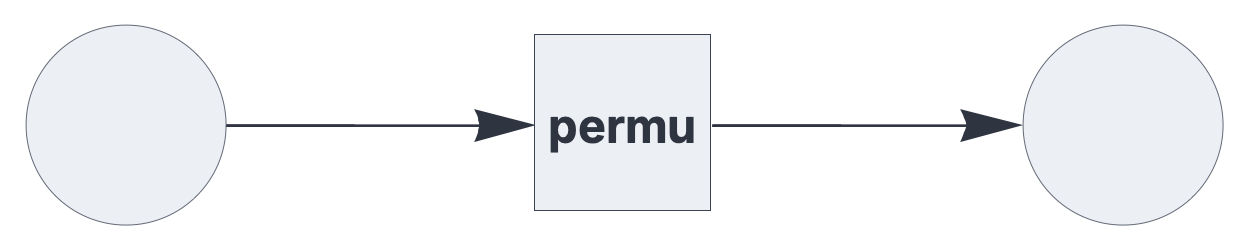

Local embedded circuits

Using the file plugin, the circuit component imports a JSON circuit description and embeds a local instance:

{ "hyperparameters": {"default": [1000, 10]},
  "dataflow": [
    {"component": "input", "send": [1]},
    {"component": "circuit", "plugin": "file", "send": [11],
        "receive": [1], "name": "permutation.json"},
    {"component": "output", "receive": [11]}
  ]}

If the embedded circuit specifies a registry name, it can be shared across multiple circuit components.

The hyperparameters of local embedded circuits are automatically rescaled to match the parameters of its inbound and outbound slots.
